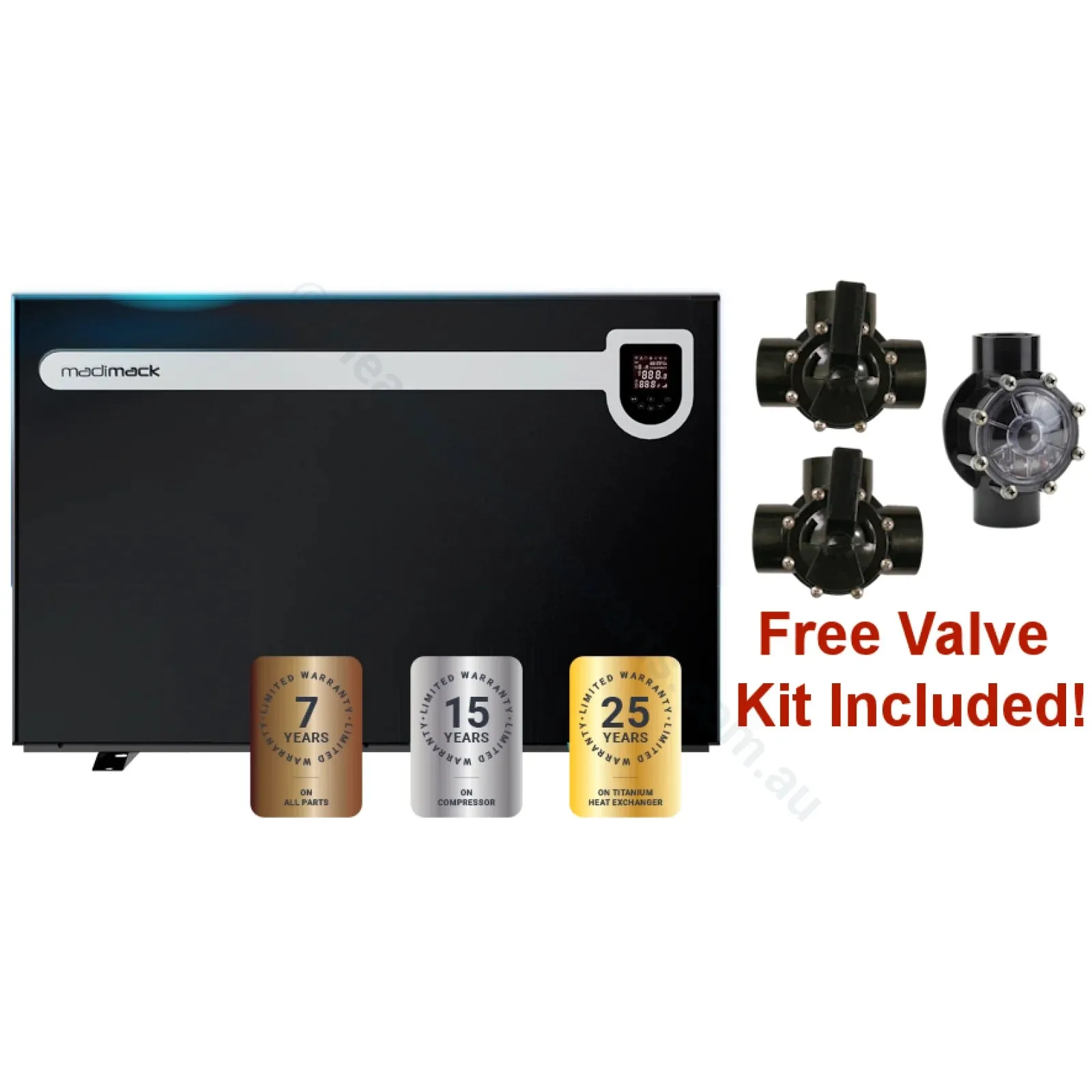

InverELITE V4 – The World’s Most Efficient & Quietest Pool Heat Pump
Unrivaled Performance with a World-Leading COP of 22
- Free Shipping Australia Wide
- Comes with HASP's Exclusive
- Documentation: |
- &

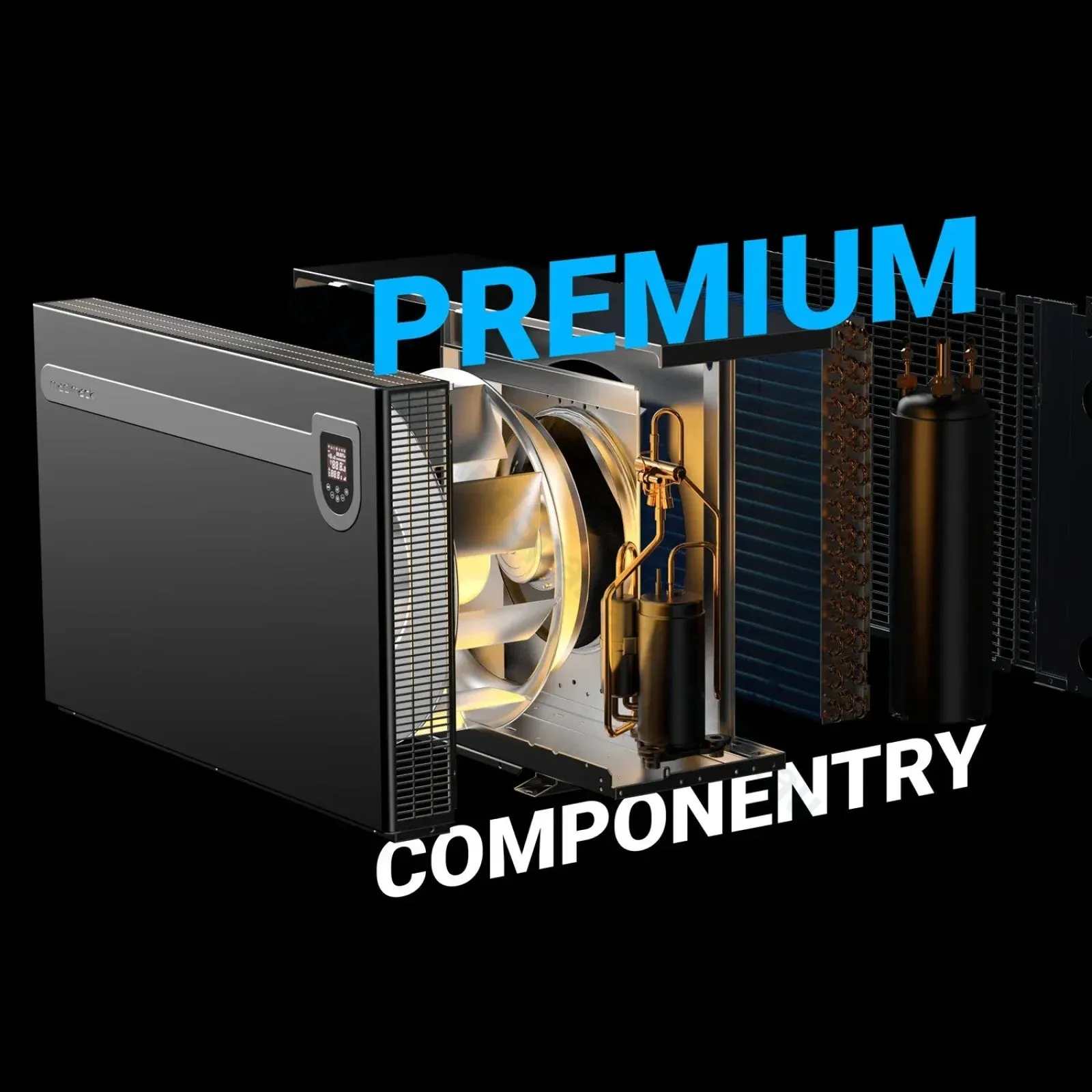

The Madimack InverELITE V4 sets a new global standard in pool heating efficiency, boasting an industry-leading COP of 22. Engineered with cutting-edge technology, it delivers unmatched performance, faster heat-up times, and near-silent operation. With premium-grade components, advanced insulation, and a revolutionary 3D airflow system, the V4 is the ultimate solution for energy-efficient pool heating and cooling.
Why Choose the InverELITE V4?

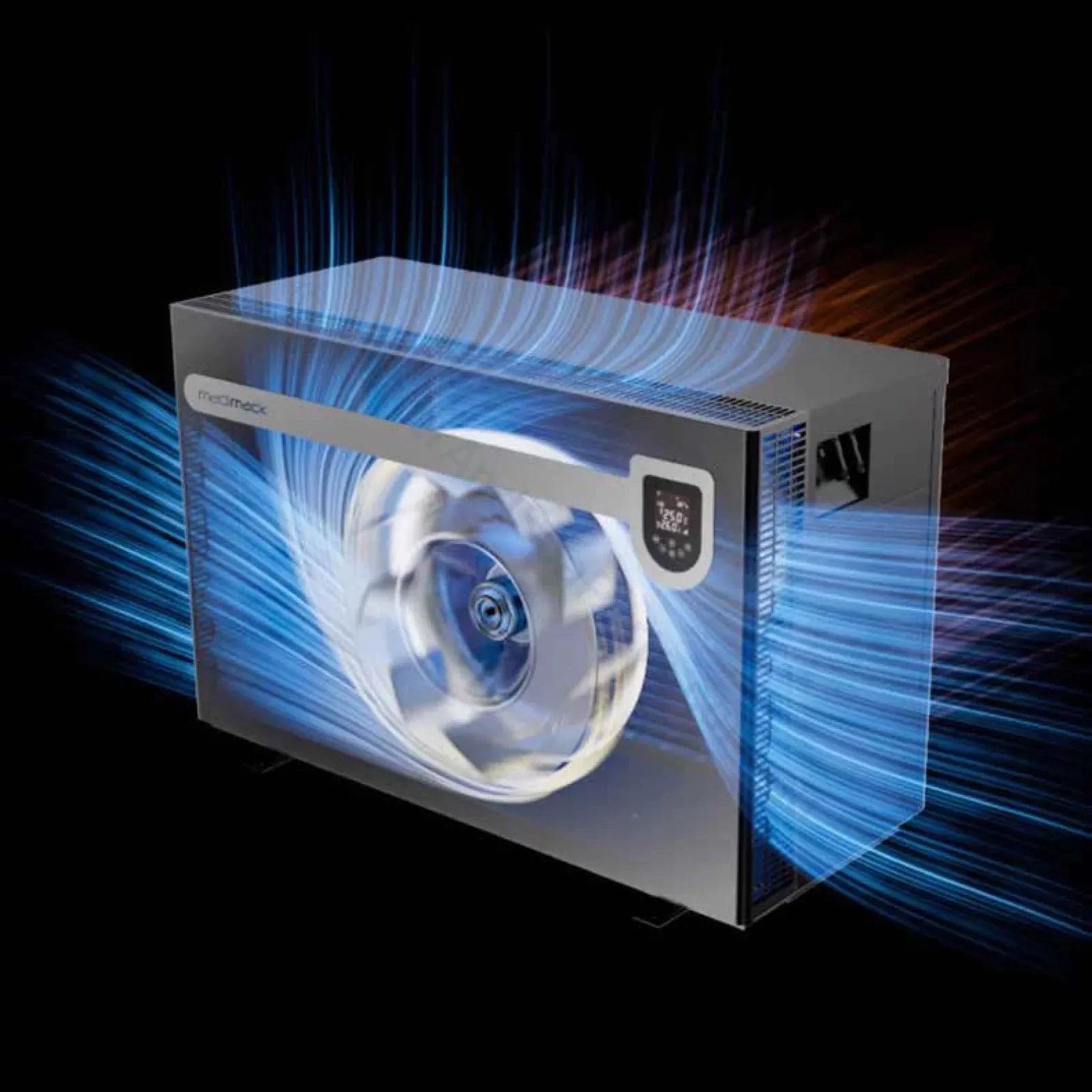

World’s First 3D Airflow Ventilation - A groundbreaking 3-directional ventilation system that reduces installation space, improves efficiency, and enhances performance.
Twin Rotary Compressor for Faster Heating - Designed for rapid heat-up times, the high-performance twin rotary compressor and commercial-grade centrifugal fan ensure exceptional power-to-performance efficiency.
Whisper-Quiet Operation - Featuring triple-layered sound insulation (condensed fiber, foam, and metal jacket), the V4 is the quietest heat pump available, providing an almost silent pool heating experience.
Premium Marine-Grade Protection - Encased in a corrosion-resistant, marine-grade aluminum alloy jacket, the V4 is built to withstand harsh weather conditions in any climate.
Quick & Easy Installation - Universal external quick-connect plugs for simplified installation.
- Only heat pump with external universal controls, allowing multiple devices to connect seamlessly.
Market-Leading Efficiency:
- COP of 22 – the highest in the industry for unparalleled energy savings.
- Extracts and utilizes heat from the air with maximum efficiency.
User-Friendly Digital Display - A sleek display screen with advanced features for effortless control and monitoring.
Unmatched Warranty Protection
- 7 Years on all parts
- 15 Years on the compressor
- 25 Years on the heat exchanger
Upgrade to the InverELITE V4 Today – The Most Advanced Pool Heat Pump Ever Built!
- Documentation: |
- .
InverELITE V4 Series Specifications:
| Model | Elite V4 - 100 | Elite V4 - 120 | Elite V4 - 140 | Elite V4 - 170 | Elite V4 - 190 | Elite V4 - 230 | Elite V4 - 270 | ||
|---|---|---|---|---|---|---|---|---|---|
| PERFORMANCE CONDITION: Air 27°C/ Water 27°C/ Humidity 80% | |||||||||
| Heating capacity (Kw) | 9.8 | 11.8 | 14.2 | 17.0 | 19.0 | 23.0 | 27.0 | 33.0 | 40.8 |
| COP Range | 19.5~7.0 | 19.7~7.2 | 20.2~7.2 | 20.4~7.2 | 20.0~7.0 | 22.0~7.3 | 21.0~7.2 | 20.3~7.1 | 18.9~7.0 |
| PERFORMANCE CONDITION: Air 15°C/ Water 26°C/ Humidity 70% | |||||||||
| Heating Capacity (Kw) | 6.8 | 8.1 | 9.6 | 11.5 | 13.0 | 15.0 | 18.5 | 22.7 | 29.0 |
| COP Range | 7.6~5.1 | 8.1~5.2 | 8.5~5.1 | 9.0~5.3 | 7.9~5.0 | 9.6~5.6 | 8.9~5.2 | 8.0~5.2 | 7.8~5.0 |
| PERFORMANCE CONDITION: Air 35°C/ Water 28°C/ Humidity 80% | |||||||||
| Cooling Capacity (kW) | 4.8 | 5.5 | 6.7 | 9.4 | 10.8 | 11.9 | 13.5 | 15.4 | 20.0 |
| TECHNICAL SPECIFICATIONS | |||||||||
| Temperature set point range (℃) | 5 ~ 40 | ||||||||
| Operating air temperature(°C) | -20 ~ 43 | ||||||||
| Casing | Aluminum-alloy Casing | ||||||||
| Compressor | Twin-Rotary Mitsubishi DC Compressor | ||||||||
| Power Supply | 230V/1Ph | 400V 3Ph | |||||||
| Electrical Connection | 10A Plug | 10A Plug | 10A Plug | Hard Wired | |||||
| Rated Input Power (Kw) | 0.16~1.33 | 0.19~1.56 | 0.23~1.88 | 0.26~2.17 | 0.31~2.6 | 0.32~2.68 | 0.43~3.56 | 0.52~4.37 | 0.70~5.80 |
| Rated Input Current (A) | 0.70~5.78 | 0.83~6.78 | 1.00~8.17 | 1.13~9.43 | 1.35~11.3 | 1.39~11.65 | 1.87~15.48 | 2.26~19.0 | 1.01~8.41 |
| Sound Level at 1m dB (A) | 36.0~41.8 | 36.0~42.5 | 36.3~43.9 | 37.2~45.5 | 37.5~46.0 | 37.6~46.8 | 37.9~48.2 | 38.2~48.7 | 38.8~49.3 |
| Sound Level at 10m dB (A) | 16.0~21.8 | 16.0~22.5 | 16.3~23.9 | 17.3~25.5 | 17.5~26.0 | 17.6~26.8 | 17.9~28.2 | 18.2~28.7 | 18.8~29.3 |
| Advised Water Flow (L/Min) ±20 | 50 | 65 | 70 | 85 | 100 | 135 | 140 | 180 | 220 |
| Gas | R32 | ||||||||
| Water Connection (mm) | 40mm | ||||||||
| Net Dimension L x W x H (mm) | 936x494 x655 | 936x494 x655 | 936x494 x655 | 1036x494 x655 | 1036x494 x655 | 1104x494 x757 | 1129x504 x945 | 1310x514 x945 | 1405x514 x1070 |
