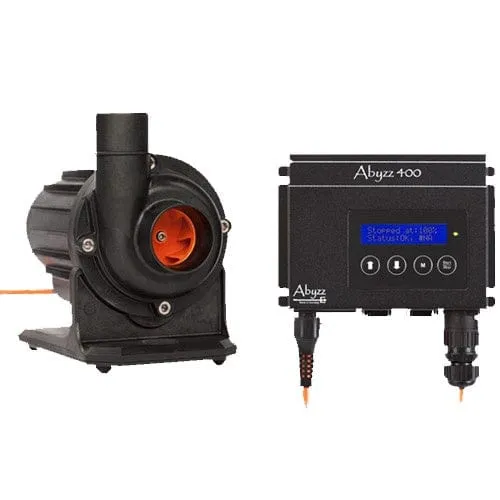

The innovative Abyzz A400 pump with titanium rotor consists of a programmable, high-performance, menu-driven electronics (driver) and a sinusoidal-commutated synchronous motor (pump).

The high efficiency of the motor makes the pump, in conjunction with the adjustable to your power requirements speed, an energy-saving solution. The integrated bearing rinse offers optimum protection against calcification and, in conjunction with the silicon carbide bearings used and a special carbide shaft, ensures low-maintenance operation.

The processed materials are designed for a long service life and meet the highest requirements and quality standards. The product is developed and produced in Germany by venotec.

Special features

• Adjustable speed range (0 to 100%)

• Programmable control (e.g wave and random mode)

• Extensive protection against e.g. dry running, overtemperature and overcurrent

• Smooth start

• Bus-compatible interface for peripheral devices

• Lockable plug contacts

• Low noise operation

Applications

• Freshwater and saltwater aquaristics

• Pond filter systems

• streams

Delivery

• Abyzz A400 pump and driver

• Power cable (1.5m) and connection cable

• Operating instructions

Installation either submerged or dry in piping, not self-priming.

The inlet / outlet connections are suitable for PVC / ABS adhesive fittings.

Additional Information

Weight	NA
Dimensions	420 × 290 × 134 mm
Maximum flow rate	23500 L/Hr
Rated flow rate	18600 L/Hr
Delivery height	12.5 meters
Outflow speed maximal	7,5 m/s
Outflow speed nominal	6,4 m/s
Operating pressure (max.)	1.2 Bar
Immersion depth (max.)	2.0 Meter
Inlet/outlet connections	50 / 40mm
Line Length (Pump)	3.0 Meter (10M Option Available at extra cost)
Power consumption	4 - 400W
Operating voltage	240V; 50-60Hz
Ambient temperature	2 °C - 40 °C
